Overview

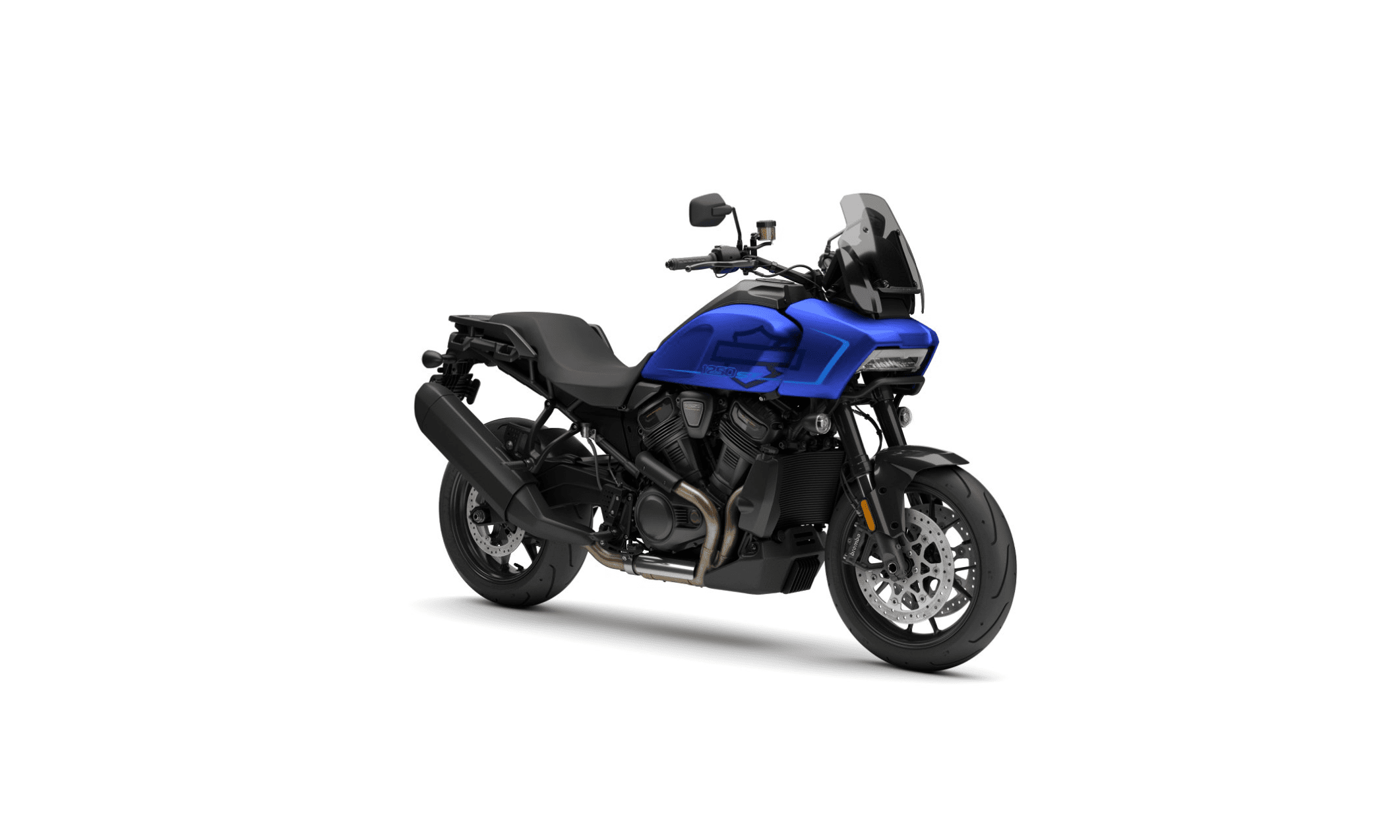

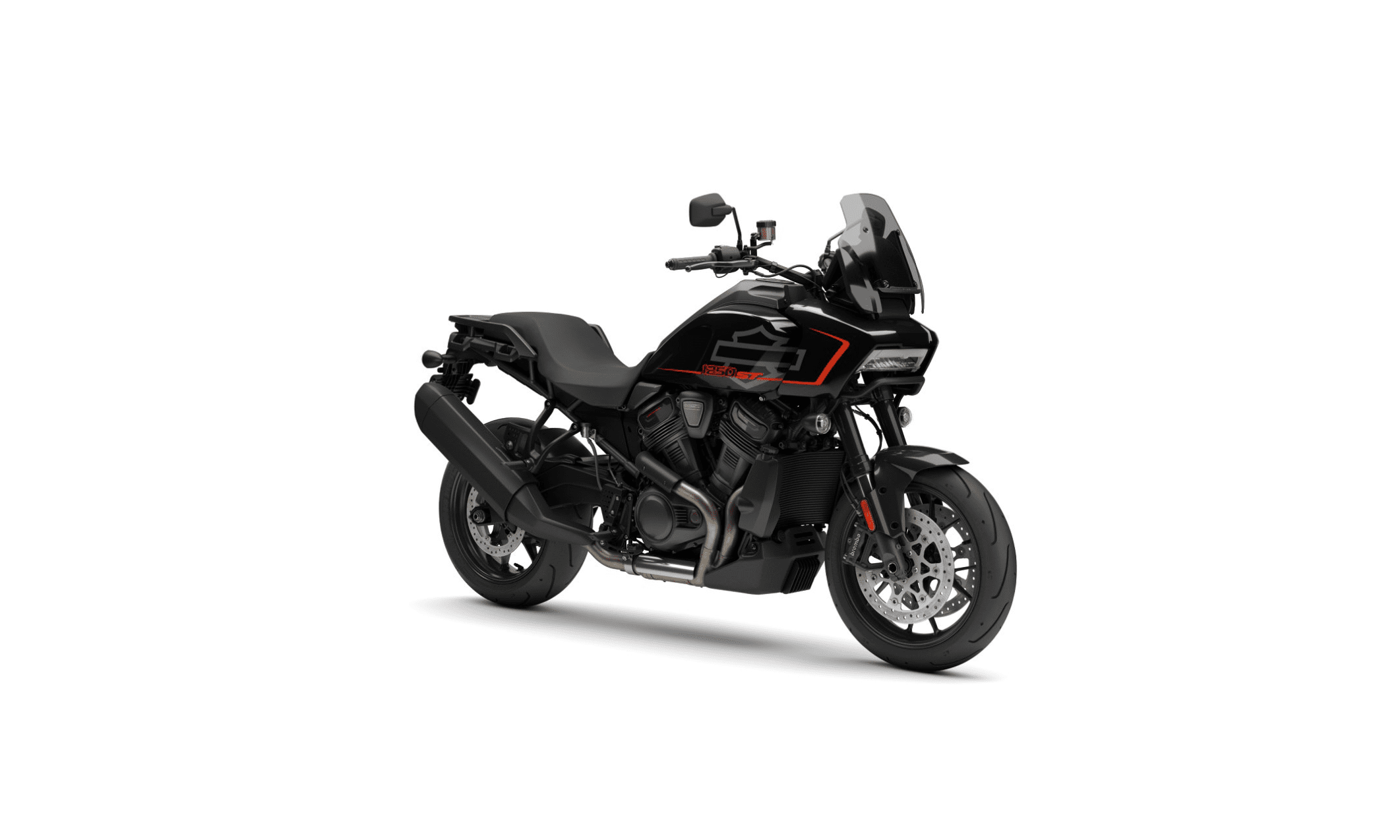

2026 Harley-Davidson Pan America1250 ST

Motorcycle

Move Like You Belong Everywhere

The 2026 Pan America 1250 ST is for riders who know the best stories aren't told in a straight line. Featuring a 150 HP Revolution Max™ motor, the new clutchless Quick Shifter, all-new ride modes, and industry-standard 432 mm wheels for easy customization, it’s a street-tuned, tech-forward machine that moves like you belong everywhere.

Request Info
View Inventory

Specs & Features

Dimensions
Length
2,240 mm
Width
895 mm
Seat Height, Unladen
825 mm
Ground Clearance
170 mm
Rake
25
Trail
95 mm
Wheelbase
1,580 mm
Tire, Type
Michelin™ Scorcher "Sport"
Tires, Front Specification
120/70ZR17 58W
Tires, Rear Specification
180/55ZR17 73W
Fuel Capacity
21.2 l
Oil Capacity (w/filter)
4.5 l
Weight, In Running Order
246 kg
Engine
Engine
Revolution™ Max 1250
Bore
105 mm
Stroke
72.3 mm
Displacement
1,252 cc
Compression Ratio
13.0:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
127 Nm
Engine Torque (rpm)
6750
Horsepower
150 HP / 112 kW @ 9000 rpm
Lean Angle, Right (deg.)
37
Lean Angle, Left (deg.)
37
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.7 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
133 g/km CO2
Drive Train
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Chassis
Front Fork
47mm inverted fork with electronically adjustable preload and manually adjustable compression and rebound. Aluminum fork triple clamps
Rear Shocks
Linkage-mounted monoshock with automatic electronic preload control and manually adjustable compression & rebound damping
Wheels, Front Type+
Aluminum cast, satin black
Wheels, Rear Type+
Aluminum cast, satin black
Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: dual rotor, floating, hub mounted; Rear: solid uniform expansion rotor
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: Daymaker™ Adaptive LED Headlamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
173 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Infotainment
Screen Size
173 mm
Type
Color TFT w/ Touch
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
Screamin’ Eagle Clutchless QuickShifter
Make precise, seamless shifts without touching the clutch lever. It’s faster, smoother, and keeps the power flowing so you can focus on getting after it.
Industry-Standard 432 mm Street Wheels
Optimized for on-road performance and compatible with a huge range of tire options, so you can dial in the perfect setup for your riding style.
Lower, Fully Adjustable Suspension
Manually adjustable preload, compression, and rebound let you fine-tune the ride for your weight, style, and the road in front of you, with an inch less travel than the Special for a lower, more planted feel.
Slim Athletic Profile
A narrow radiator shroud, reduced-height windshield, and one-piece low seat put you closer to the ground than the Special, with a stance that feels as good in traffic as it does on the open road.
Screamin’ Eagle Clutchless QuickShifter
Make precise, seamless shifts without touching the clutch lever. It’s faster, smoother, and keeps the power flowing so you can focus on getting after it.
