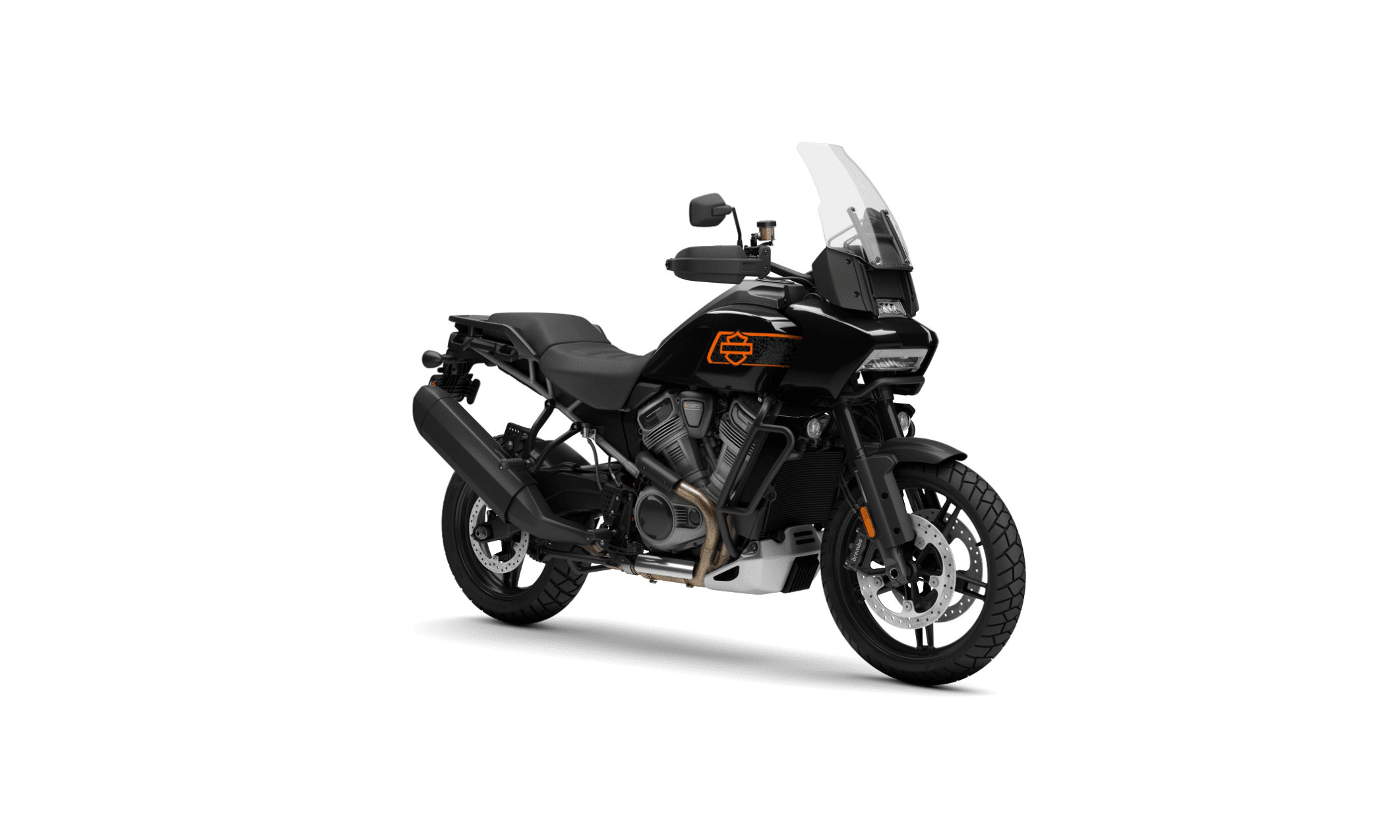

2026 Harley-Davidson Pan America1250 Special

Motorcycle

Built to Go Where the Road Won't

From city slab to backcountry rock, the Pan America 1250 Special delivers 112 kW of adaptable power at the flick of the throttle, in a package that weighs less than 258 kg, has Rider Safety Enhancements, a 173 mm touchscreen display and optional Adaptive Ride Height. It’s packed with tech and built to take you wherever you want to go, even if the road doesn’t.

Request Info
View Inventory

Specs & Features

Dimensions
Length
2,270 mm
Width
975 mm
Seat Height, Unladen
Low/High Seat Position; 850 mm/875 mm
Ground Clearance
175 mm
Rake
25
Trail
108 mm
Wheelbase
1,585 mm
Tire, Type
Michelin™ Scorcher “Adventure”, Radial
Tires, Front Specification
120/70R19 60V
Tires, Rear Specification
170/60R17 72V
Fuel Capacity
21.2 l
Oil Capacity (w/filter)
4.5 l
Weight, In Running Order
263 kg
Engine
Engine
Revolution™ Max 1250
Bore
105 mm
Stroke
72.3 mm
Displacement
1,252 cc
Compression Ratio
13.0:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-1-into-1; catalyst in header
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
128 Nm
Engine Torque (rpm)
6750
Horsepower
150 HP / 112 kW @ 8750 rpm
Lean Angle, Right (deg.)
42
Lean Angle, Left (deg.)
42
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
125 g/km CO2
Drive Train
Primary Drive
Gear, 49/89 ratio
Gear Ratios (overall) 1st
13.11
Gear Ratios (overall) 2nd
9.687
Gear Ratios (overall) 3rd
7.509
Gear Ratios (overall) 4th
6.057
Gear Ratios (overall) 5th
5.08
Gear Ratios (overall) 6th
4.436
Chassis
Front Fork
47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps
Rear Shocks
Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
Wheels, Optional Style Type+
Annodized aluminum tubeless laced
Wheels, Front Type+
Aluminum cast, satin black
Wheels, Rear Type+
Aluminum cast, satin black
Brakes, Caliper Type
Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
Brakes, Rotor Type
Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: Daymaker™ Adaptive LED Headlamp with 6-segment LED banking lamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
173 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Infotainment
Screen Size
173 mm
Type
Color TFT w/ Touch
Headset Specifications (if equipped)
Bluetooth
Languages
Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese
Hands-free Mobile Phone - via Bluetooth
Standard
Voice Recognition Languages: Phone functions only
Phone dependent
Voice Recognition Languages: Tuner/Media/Navigation
Phone dependent
Rider/Passenger Intercom
Headset function only
Vehicle Information Screen (Air temperature, oil pressure and EITMS)
TPMS, Engine temp, Battery Voltage, Ambient Air Temp
Text-to-Speech (TTS) Languages
Phone dependent
USB
Charging and Instrument update, USB-C, 5V, 3A
Bluetooth
Phone/Media Supported
Semi-Active Suspension That Adapts to the Ride
Semi-active suspension automatically fine-tunes itself as you ride, keeping the bike planted and composed whether the day takes you over smooth sweepers or down rough backroads.
Adjustable Seat Height with Adaptive Confidence
Switch between 850 mm and 875 mm seat heights to fine-tune your riding position, then let available Adaptive Ride Height automatically lower the bike at stops for surer footing. The result: a fit that keeps you comfortable and in control from kickstand up to kickstand down.
Wheels + Tires Ready for Any Surface
Michelin™ Scorcher Adventure radials deliver confident grip from city pavement to backcountry curves, while optional tubeless laced wheels open the door to even bigger miles and rougher roads.
172 mm Full-Color TFT Touchscreen
Navigation, bike data, and Bluetooth™ connectivity are just a tap away on the glove-friendly touchscreen, making it easy to stay informed without breaking your rhythm.
Advanced Charging + Battery Performance
A larger-capacity battery and improved charging system deliver faster charging at idle, reliable cold starts, and the power to run your accessories even if Mother Nature doesn’t have an outlet for you.
