Overview

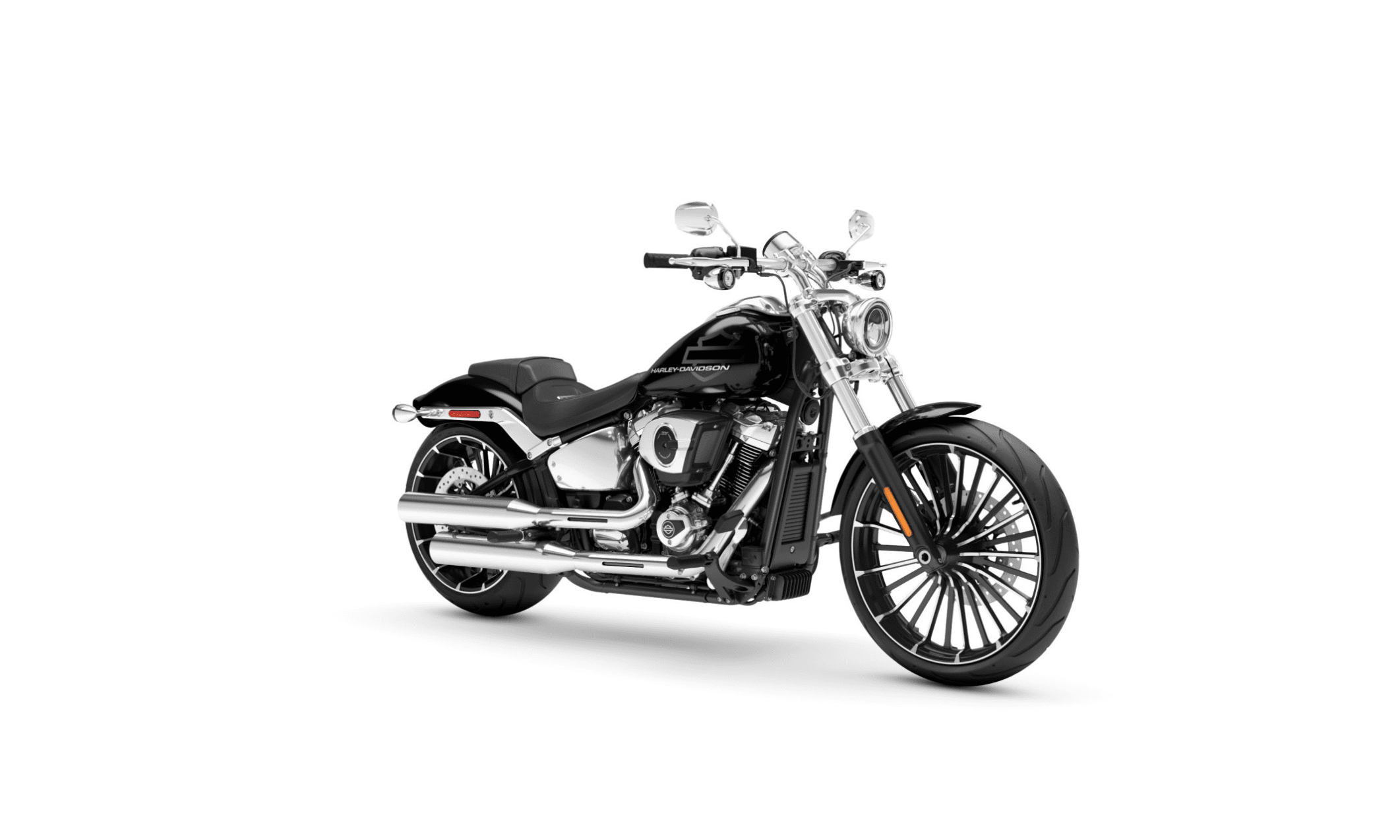

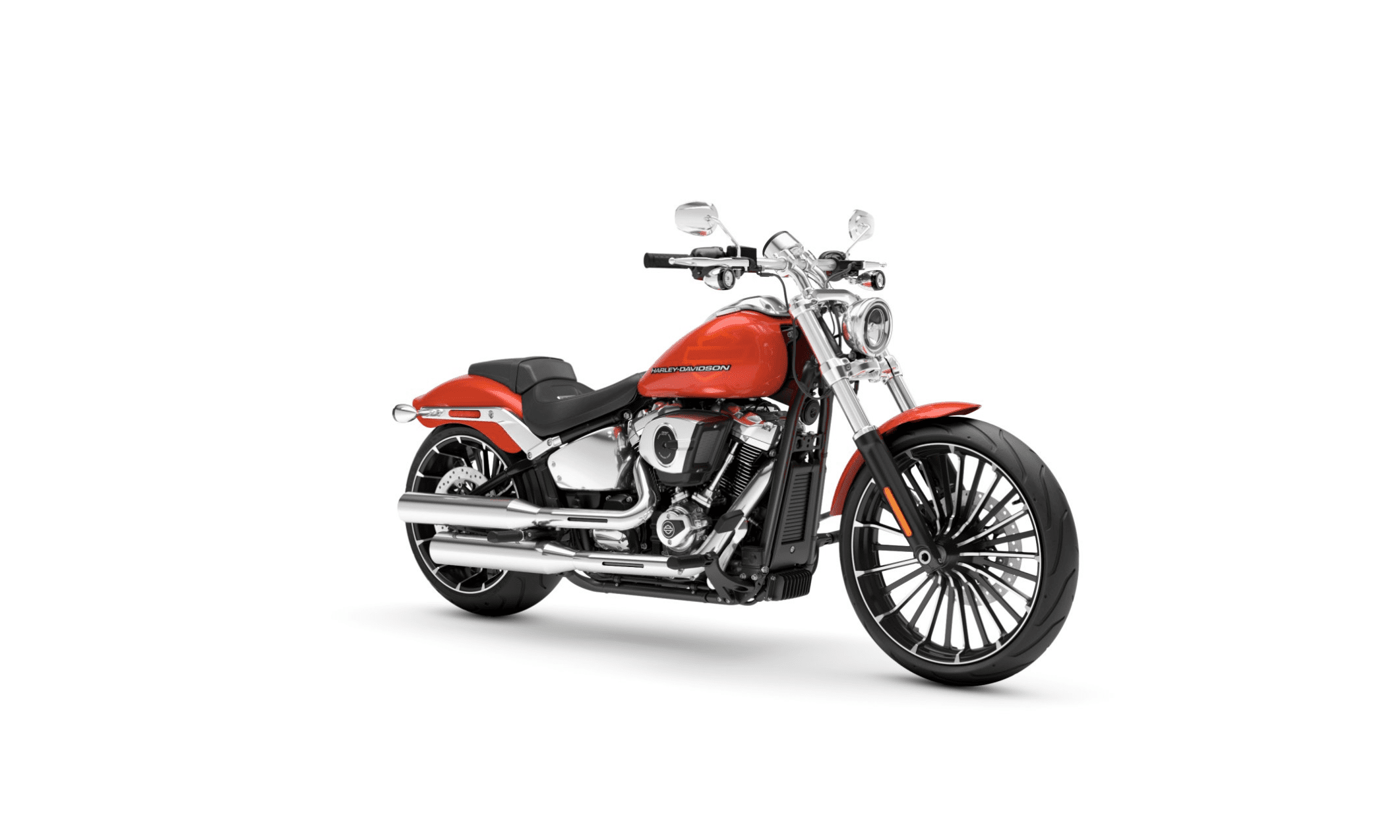

2026 Harley-Davidson Breakout

Motorcycle

Why Blend in When You Can Break Out?

With 34 degrees of rake in the neck, a bobtail fender, and a 240mm rear tire, the 2026 Breakout feels like a factory-built street sweeper. But don't get lost in the long-and-low chopper lore. This bike also offers USB-C charging, Rider Safety Enhancements standard, a monster Milwaukee-Eight™ 117 Custom, two new paint options, and much more.

Request Info
View Inventory

Specs & Features

Dimensions
Length
2,375 mm
Width
940 mm
Seat Height, Unladen
665 mm
Ground Clearance
115 mm
Rake
34
Trail
145 mm
Wheelbase
1,695 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
130/60B21,63H,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
309 kg
Engine
Engine
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
168 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 5020 rpm
Lean Angle, Right (deg.)
26.8
Lean Angle, Left (deg.)
26.8
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2
Drive Train
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Gloss black, 26-spoke cast aluminum
Wheels, Rear Type+
Gloss black, 26-spoke cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
102 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
Big-Inch Milwaukee-Eight 117 Custom Motor
The most displacement you can get in a factory-installed, regular-production Harley-Davidson® powertrain. Torque-rich, smooth-running, and made to move.
300mm Front Disc + 533 mm Wheel
A single 300mm disc brake delivers confident stopping power while keeping the lines clean on that tall, bold 533 mm front wheel.
Boldly Profiled 240mm Rear Tire
A massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.
102 mm Analog Gauge + Customizable Ride Modes
A clean 102 mm analog gauge with a built-in digital display delivers the info you need without clutter, keeping the view as sharp as the rest of the Breakout. Road, Rain, and Sport ride modes adjust throttle response and traction settings to match how and where you ride, giving you quick tuning that keeps it feeling exactly the way you want.
146 mm LED Headlamp + LED Turn Signals
Bright, clean, and impossible to ignore. A 146 mm LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.
